MODEL LIST SUMMARY2x5CI3-3 PDF VERSION

DUPLEXER  >  BANDPASS   BANDPASS DUPLEXER 'CI'

400 - 520 MHz

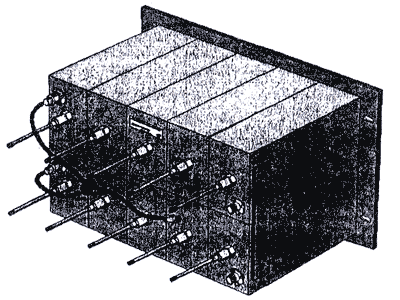

MODEL 2x5CI3-3

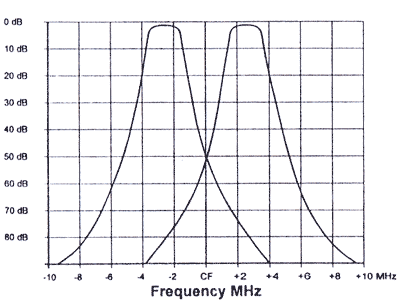

MODEL NO 2x5CI3-3 FREQUENCY RANGE 400 - 520 MHz IMPEDANCE 50 ohms VSWR 1.3:1 PASSBAND 1 MHz (typical) INSERTION LOSS 2 db ISOLATION 80 dB @ ± 5.2 MHz ISOLATION 95 dB (min) @ ± 9.5 MHz TEMP. RANGE -10°C to +60°C TERMINATION 'N' FEMALE WIDTH 483 mm DEPTH 340 mm HEIGHT 222 mm WEIGHT 12kg MODEL 2x5CI3-3 Typical Response Curve
